The EVENT-26A is a symmetrical, ultra-compact, two-way powered line array system. Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design offers a highly portable and road-worthy system. A comprehensive range of accessories makes the EVENT-26A ideal for small to mid-size rental and installation applications.



The EVENT-26A combines two 6.5″ transducers and a single M-60 compression driver in a rugged yet lightweight polymer cabinet. The symmetric “V” shaped configuration of the cone transducers provides consistent 100º of horizontal coverage down to 200 Hz. The M-60 compression driver is coupled to an advanced waveguide design that provides control of the vertical dispersion as well as precise coupling between units when used in vertical arrays.

Powered by a two-channel Class D amplifier providing 800 Wpeak power, the amp´s rear panel includes quality Neutrik® XLR and powerCON connectors. The DAScontrol^TM interface makes the preset selection for the number of units in the array both fast and simple. An onboard DSP featuring a 24-bit high-end processor handles X-over, EQ, delay, and limiter functions. The powerful FIR filtering technology incorporated in the EVENT-26A offers constant phase response which translates to transparent sound and exceptional clarity, improving the listening experience.

Streamlined deployment of EVENT-26A arrays is possible thanks to the innovative FSS^TM (Fast Set Splay) rigging system developed to permit angle selection while stacked on dollies. The stainless-steel rigging hardware allows flown arrays of up to 16 units in 1º steps from 0º to 10º.

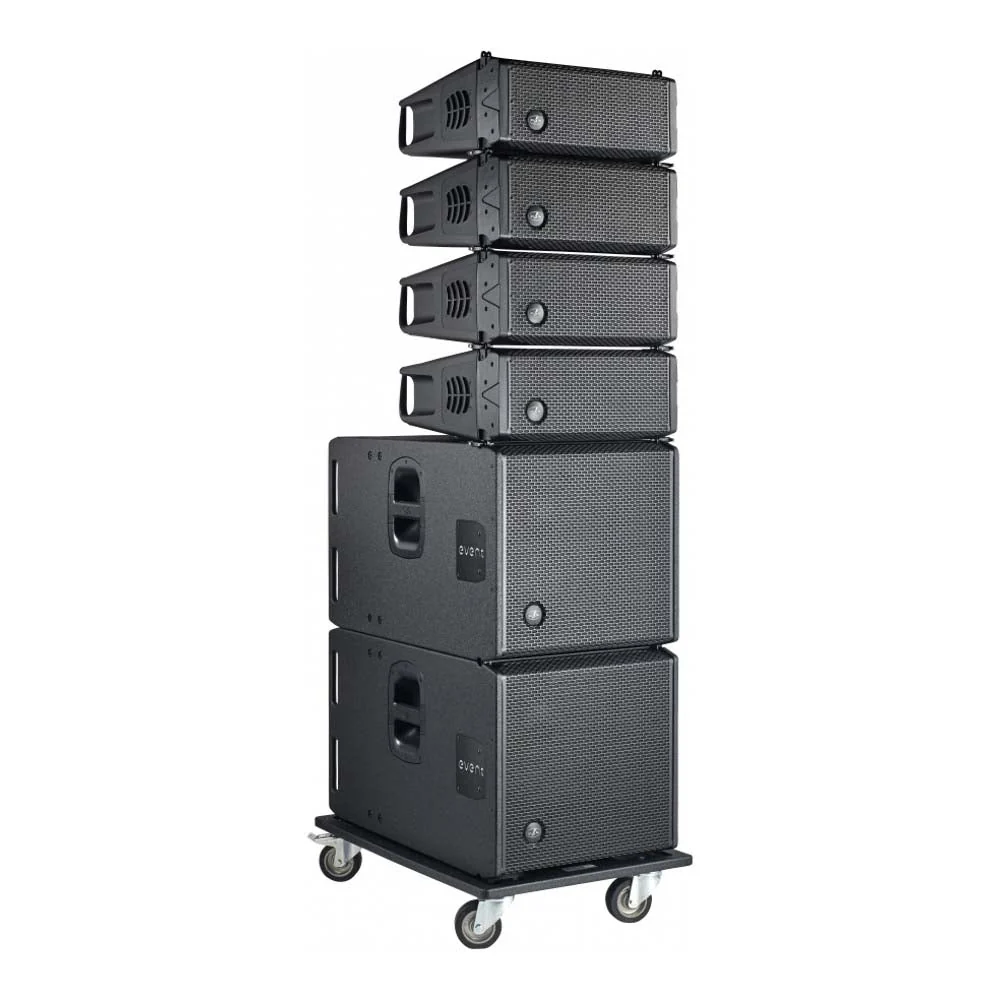

Low frequency reinforcement for the EVENT-26A is provided by its flyable companion subwoofer the EVENT-115A.

Performance

• Frequency Range (-10 dB) 76 Hz – 19 kHz
• Horizontal Coverage (-6 dB) 100º
• Vertical Coverage Splay Dependent
• Maximum Peak SPL at 1 m 131 dB

Electronics and Connectors

• Nominal Amplifier Power (continuous) 400 W
• Nominal Amplifier Power (peak) 800 W
• Input Type Balanced
• Input Impeadance 20 kohms
• Input Sensitivity 2 V (+18 dBu)
• Audio Signal Input Connector 1 x Female XLR
• Audio Signal Loop Thru Connector 1 x Male XLR
• AC Input Connector powerCON NAC3MPA
• AC Output Connector powerCON NAC3MPB
• Operating Range 90-127/180-250 VAC
• Current Draw 115 V 6 A
• Current Draw 230 V 8 A

Enclosure

• Enclosure Construction Polypropylene
• Enclosure Geometry Trapezoidal
• Rigging Captive Rigging System
• Color Black
• IP Rating IP43
• Dimensions ( H x W x D ) 225 x 480 x 485 mm
• 8,9 x 18,9 x 19,1 in
• Net Weight 16,5 kg ( 36,4 lb )

Components

• LF Driver 6MI
• HF Driver M-60

Shipping

• Carton Dimensions ( H x W x D ) 565 x 565 x 290 mm
• 22.2 x 22.2 x 11.4 in
